2026 Guide to Radiated vs. Conducted Emissions Testing for Engineers

Electronics teams heading into 2026 face tighter EMC expectations, denser designs, and more scrutiny from regulators and customers. Radiated and conducted emissions testing sits at the center of that pressure — it’s still one of the most common reasons products miss launch dates or require costly redesigns.

This article is a practical guide for engineers, not a standards lawyer’s overview. The goal is to help you design and plan testing so radiated and conducted emissions become a managed risk, not a late-stage surprise.

What You’ll Learn

In this blog, you’ll learn how to:

• Distinguish radiated vs. conducted emissions in terms that map directly to design decisions and layout choices.

• Align your product with key EMC standards that will define emissions testing in 2026 and beyond.

• Build a practical test and design strategy that minimizes retests, schedule slips, and emergency shielding fixes.

• Plan a 2026-oriented compliance approach that uses pre-compliance, clear assumptions, and the right lab partner.

1. Why Radiated and Conducted Emissions Still Matter for 2026 Launches

EMI is not a “solved” problem. Faster edge rates, higher power density, and proliferating wireless interfaces mean more ways for your product to interfere with other equipment or radio services.

Regulatory frameworks reflect this reality. Product-family standards such as CISPR 32 for multimedia equipment and IEC/EN 61326-1 for measurement, control, and lab equipment continue to specify both conducted and radiated emission limits as prerequisites for CE marking and global market access.

On top of formal compliance, market surveillance schemes such as the EU Safety Gate make it easier for authorities to flag non-compliant products and force corrective actions or recalls, especially where EMC problems create safety or essential-performance risks rather than just nuisance interference.

For 2026 and beyond, that means emissions performance is both:

• A regulatory requirement (to access markets and maintain approvals), and

• A reputation and reliability factor, because enforcement and customer scrutiny do not stop at launch.

2. What Is the Difference Between Radiated and Conducted Emissions?

Short answer:

• Radiated emissions are unwanted electromagnetic fields that leave your product and its cabling and propagate through free space, where they can interfere with other equipment or radio services.
• Conducted emissions are unwanted RF voltages and currents that flow along power lines and some signal ports, where they can couple into other devices via shared wiring and infrastructure.

Practically, radiated emissions are heavily influenced by geometry and unintentional antennas, while conducted emissions are strongly shaped by your power-conversion and filtering strategy. Both ultimately arise from the same switching behavior and return-path choices in your design.

2.1. Radiated vs. Conducted Emissions – Comparison Table

2.2. How Engineers Should Think About Each

From a design perspective:

Radiated emissions are heavily influenced by:

• Loop areas and return paths

• Enclosure design and bonding

• Cable routing and terminations

• Any unintended antennas you create in the layout or harness

Conducted emissions are strongly influenced by:

• Power-conversion noise spectra

• Common-mode currents on mains/DC lines

• Grounding schemes and reference design

• The design and sizing of line and DC filters

Thinking in terms of these coupling paths early on is essential. When teams start defining EMC risk up front, resources focused on building EMC discipline into layout and enclosures from day one provide a useful complement to emissions test planning.

3. Key EMC Standards and Limits to Track for 2026 and Beyond

Most products engineers at OEMs are designing for 2026 will be assessed against a combination of:

Product-family emission standards, such as:

• CISPR 11 (EN 55011) for industrial, scientific and medical (ISM) equipment

• CISPR 32 (EN 55032) for multimedia / IT equipment

These define measurement setups and limits for radiated and conducted emissions.

IEC 61326-1 / EN IEC 61326-1 for electrical equipment used in measurement, control and laboratory environments, which sets general EMC requirements (both emissions and immunity) for equipment operating below 1,000 V AC or 1,500 V DC.

Region-specific regulatory frameworks include:

• The EU’s EMC Directive and Radio Equipment Directive (RED).

• FCC Part 15 in the US, which governs radio frequency devices and defines unintentional radiator limits and authorization routes.

• Depending on your sector, you may also need to consider:

  • Generic industrial standards such as EN 61000‑6‑x.

  • Medical EMC standards like IEC 60601‑1‑2.

  • Automotive and military EMC documents such as CISPR 25 and MIL‑STD‑461.

If your product sits in a mixed-technology space — for example, IoT hardware that combines IT‑like processing with industrial interfaces — it’s worth reviewing how emissions and CE requirements are interpreted for similar devices in our article on CE testing for IoT hardware and edge computing.

Three practical implications for engineers:

• Frequency ranges and detector types are predetermined.
  You don’t control the frequency bands, detector types, or distances the lab must use, but you do control operating modes, cabling, loads, and ultimately whether your design behaves acceptably in those ranges.



• Class A vs. Class B limits matter.
  Class B (typically residential/consumer) equipment faces tighter limits than Class A (industrial/commercial), driving how aggressive you must be with filters, shielding, and layout constraints.


• Measurement uncertainty is not your buffer.
  Labs must characterize their uncertainty, but you should aim for real design margin, not expect measurement tolerance to “save” borderline results.

4. How Do Labs Test Radiated and Conducted Emissions?

4.1. Radiated Emissions Test Setups

For radiated emissions in the 30 MHz–1 GHz baseline range (with additional bands up to 6 GHz or above where required), the typical setup is a semi-anechoic chamber or open-area test site (OATS) with:

• A broadband antenna 3 m or 10 m from the EUT, height-scanned over a specified range.

• A turntable to rotate the EUT through 360°.

• A ground reference plane and defined EUT table height (often 0.8 m for tabletop equipment).

• A compliant EMI receiver that sweeps the required frequency bands with the correct detectors (quasi-peak, average, RMS).

• Cables arranged according to the standard: defined lengths and heights, in geometries intended to be repeatable and reasonably close to worst-case rather than whatever happens to look neat on the bench.

4.2. Conducted Emissions Test Setups

For conducted emissions, the EUT’s mains or DC supply is routed through a LISN (Line Impedance Stabilization Network) or equivalent artificial mains/coupling network that:

• Presents a standardized impedance to the equipment.

• Couples RF noise to the EMI receiver for measurement.

Key engineering takeaways:

• The lab is effectively testing your line filter, grounding, and converter noise against fixed impedance and limit lines.

• Poor cable dressing or unrepresentative loads can hide real-world problems, so it’s important to replicate realistic operating modes and loads at the lab.

A good reference point is our overview of CE testing for laboratory, control, and measurement equipment, which shows how emissions, immunity, and safety evaluations fit together in a typical CE program for this kind of gear.

Pre-Compliance Tip

Before you commit to full formal testing, schedule pre-compliance radiated and conducted scans on representative prototypes. You’ll catch layout, filter, and harness issues while changes are still cheap.

5. Design Strategies to Control Radiated Emissions

Radiated emissions problems often trace back to a few recurring design issues:

• Large current loops and fragmented return paths, especially in mixed-signal and power sections.

• Long, unshielded cable runs leaving the enclosure without proper common-mode control.

• Poor enclosure bonding, seam design, or gasket implementation.

For 2026 designs, practical steps include:

• Prioritize return-path integrity.
  Treat every high-di/dt loop as a potential antenna. Maintain solid reference planes and avoid unnecessary splits that force return currents into unintended paths.

• Control common-mode currents on cables.
  Use common-mode chokes, feedthrough capacitors, and bonding strategies near I/O connectors to stop internal noise from coupling onto external harnesses.

• Design the enclosure as part of the circuit.
  Door seams, viewing windows, and ventilation can all become leakage points if not designed with gaskets, honeycomb, or other shielding approaches in mind.

Where radiated immunity and crosstalk are also concerns, our case study on crosstalk in a monitoring system control unit shows how long internal wiring and PCB traces can undermine otherwise solid protection schemes.

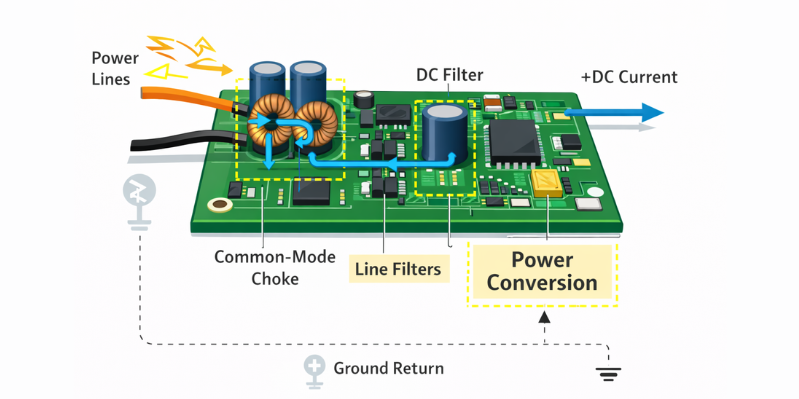

6. Design Strategies to Control Conducted Emissions

Conducted emissions are usually driven by your power architecture and line filtering.

Key levers include:

• Switching converter frequency planning.
  You can’t avoid having harmonics in the 150 kHz–30 MHz window, but you can avoid stacking converter fundamentals and resonances right on top of known problem bands. Coordinate across the design so multiple converters don’t pile their energy into the same narrow region.



• Robust line filtering.
  Combine differential and common‑mode filtering sized for realistic leakage and component tolerances. Don’t rely on “typical” datasheet curves alone; consider worst‑case scenarios and production spread.



• Grounding and segregation.
  Keep noisy power circuits physically and electrically separated from sensitive analog and I/O domains. Use deliberate single‑point or controlled multi‑point returns instead of ad‑hoc ground connections.

In many CE projects, teams discover only at the test lab that their chosen filters are marginal once real-world line conditions, temperature, and component tolerances are taken into account. The patterns described in our article on why products fail CE testing and how to avoid costly retests apply directly to conducted emissions as well.

7. Failure Patterns GME Sees – And How to Avoid Re-Testing

Across sectors like lab instrumentation, industrial controls, and IT/multimedia, several emissions-related failure patterns repeat:

• Cable-dominated radiated failures.
  The EUT enclosure looks clean, but unshielded I/O or power cables become dominant radiators. Clip-on ferrites, improved filtering, and better connector bonding often solve these — but only after an initial failure.

• Filter mismatch in conducted tests.
  Line filters chosen from catalogue guidelines fail when real operating conditions or multiple converters interact. Retrofitting higher-performance filters or adding common-mode chokes is common.

• Late discovery of standard misalignment.
  Teams design to a generic EMC target and only later learn that a stricter product-family standard applies for their intended market. This often forces design rework right before launch.

By 2026, enforcement tools such as Safety Gate make it even less attractive to “roll the dice” and ship products with marginal EMC performance; non-compliance, particularly where it affects safety or essential performance, can trigger public alerts and corrective actions well after launch.

GME’s experience supporting CE, FCC, military, maritime, and sector-specific EMC programs means we often help customers avoid second and third test cycles simply by validating standards selection and risk areas before formal testing begins.

Downloadable Resource

Want to avoid common radiated and conducted emissions failure patterns? Download an Emissions Pre-Compliance Checklist to review at each EVT/DVT build. Use it to confirm standards selection, cabling assumptions, operating modes, and filter strategies before you book lab time.

Download GME's Emissions Pre-Compliance Checklist

8. How to Plan Your 2026 Emissions Compliance Strategy

A robust plan for emissions testing in 2026 should be treated as an engineering activity, not just a checkbox.

Practical steps:

• Select standards and equipment class early.
  Decide whether your product targets industrial vs. residential environments and which product-family standards apply before locking down architecture.

• Schedule pre-compliance scans at key milestones.
  Use pre-compliance radiated and conducted scans at key build stages (e.g., EVT/DVT) to characterize emissions with representative cabling and loads.

• Document EMC assumptions.
  Capture intended operating modes, loads, installation environments, and cable configurations so the lab can test in a way that matches real usage.

• Align emissions and immunity planning.
  Don’t treat emissions in isolation. Layout, filtering, and shielding choices affect both emissions and immunity performance.

For teams working on advanced categories like AI-enabled devices or connected smart-home systems, dedicated guidance such as our CE testing strategies for AI-enabled products and CE strategies for connected consumer devices can help anchor these planning steps.

Maintain an emissions pre‑compliance checklist to review at each EVT/DVT build, covering standards selection, cabling assumptions, operating modes, and filter strategies before you book lab time.

Download the checklist

9. How Green Mountain Electromagnetics Supports Emissions Testing for 2026 Launches

Green Mountain Electromagnetics (GME) is an ISO 17025-accredited EMC and product-safety lab with decades of experience guiding manufacturers through CE, FCC, and specialized EMC standards.

Our facilities support:

• Conducted and radiated emissions tests

• Radiated and conducted immunity

• Safety evaluations across a wide range of industries

For engineers planning 2026 launches, that translates into:

• Help selecting the right EMC standards and limits for your markets and equipment class.

• Practical pre-compliance testing and debug support focused on radiated and conducted emissions.

• Formal accredited testing and documentation to support CE marking and other approvals.

If you’re scoping a new platform or facing a challenging re‑spin, now is the right time to map out emissions risk. You can start by reviewing our broader EMC and product testing guidance, including topics like different types of EMC tests and how to choose an EMC test laboratory.

Then coordinate with our team for a 2026-oriented emissions test plan tailored to your product and markets.

Plan Your 2026 Emissions Testing with GME

If your hardware needs to meet CE, FCC, or sector-specific EMC standards, planning emissions early is the fastest way to avoid delays and redesigns.

• Not sure which standards apply?
  We can help you align target markets, equipment class, and product-family standards before you commit to an architecture.

• Need a second opinion on emissions risk?
  Our engineers can review your schematics, layout, and cabling assumptions and suggest practical risk-reduction steps.

Next step: Reach out to our team to schedule a 30-minute emissions test planning call and start building your 2026 compliance roadmap.

Key Takeaways

• Radiated vs. conducted emissions differ mainly in how unwanted energy leaves your product: through free space vs. along cables and power lines. Both are critical for CE, FCC, and other approvals.

• 2026 and beyond won’t get easier: faster edge rates, denser boards, and more wireless interfaces increase EMI risk while regulators and market surveillance raise the bar.

• Standards pick the battlefield: product-family standards (e.g., CISPR 11/32, IEC/EN 61326-1) define frequency ranges, detector types, and limits — you control operating modes, cabling, layout, and filters so your design behaves properly within that framework.

• Most failures are preventable: poor cable management, marginal filters, and late standards selection routinely cause emissions failures and retests.

• Pre-compliance and planning pay off: early scans, realistic cabling/use cases, and explicit EMC assumptions dramatically reduce late surprises.

GME can help you pick the right standards, plan pre-compliance, and execute accredited testing for 2026 launches.
