EMC Test Failed — Now What? A Diagnostic Playbook for Engineers
A failed EMC test rarely means your design is wrong. It usually means one dominant coupling path is out of spec, and the test report already tells you where to look. Engineers who clear failures quickly treat that report as a map and work it methodically, rather than reaching for the soldering iron and changing five things at once.
That discipline matters because EMC failures tend to converge. A large share trace back to a short list of usual suspects: cables, grounding, switching noise, and enclosure leakage. Once you can read a symptom and match it to a likely cause, remediation becomes targeted instead of trial and error.
This playbook covers:
-
How to turn a failure report into a short list of probable root causes
-
The dominant causes behind radiated, conducted, and immunity failures, and the fixes that address each
-
How to validate a fix before you pay for another full test
First, Read the Report as Data, Not a Verdict
The failure report is the most useful diagnostic tool you have, so mine it before you touch the hardware. An emissions report names the frequency of the exceedance, the applicable limit line, the margin by which you went over, and the detector, antenna polarization, and geometry in use. An immunity report names the test, the level applied, and the failure mode the operator observed.
Those details point to a cause far more reliably than intuition does. A 3 dB miss at a single clock harmonic is a different problem than a broadband exceedance across hundreds of megahertz, and the report distinguishes them for you.

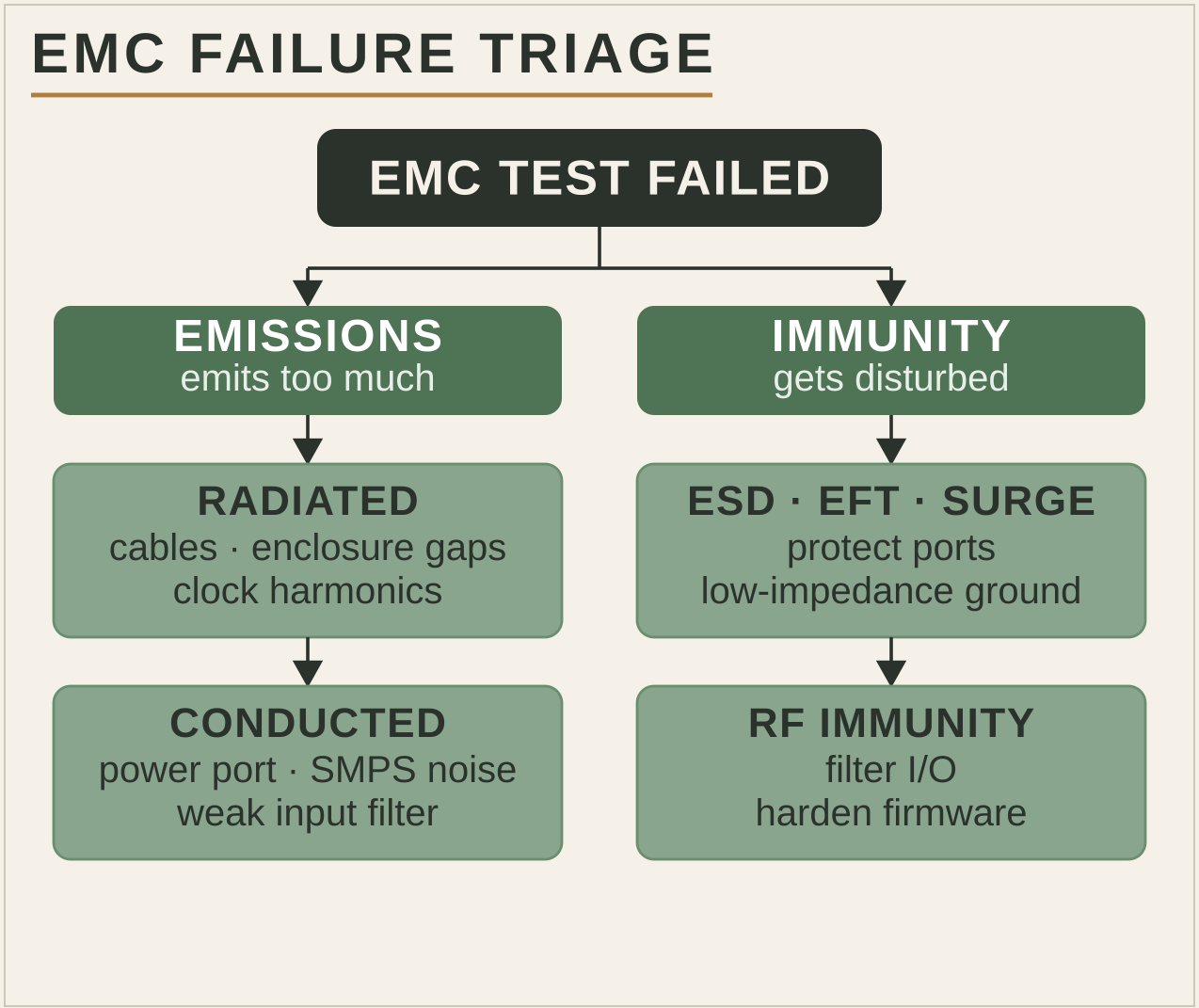

Step 1: Classify the Failure
Every EMC failure is one of two things:
-
an emissions failure, where your product puts out too much, or
-
an immunity failure, where something external disturbs it.
Those two categories map directly to the two essential requirements the EMC Directive sets, which is a useful reminder that both halves have to pass. Emissions then split into radiated and conducted, while immunity spans electrostatic discharge, fast transients, surge, and radiated or conducted RF.
Getting this classification right is half the diagnosis, because each branch has different dominant sources and different fixes. Confirming which emissions and immunity tests apply to your product tells you which physics you are fighting, and separatin
Radiated Emissions: Follow the Frequency to the Source

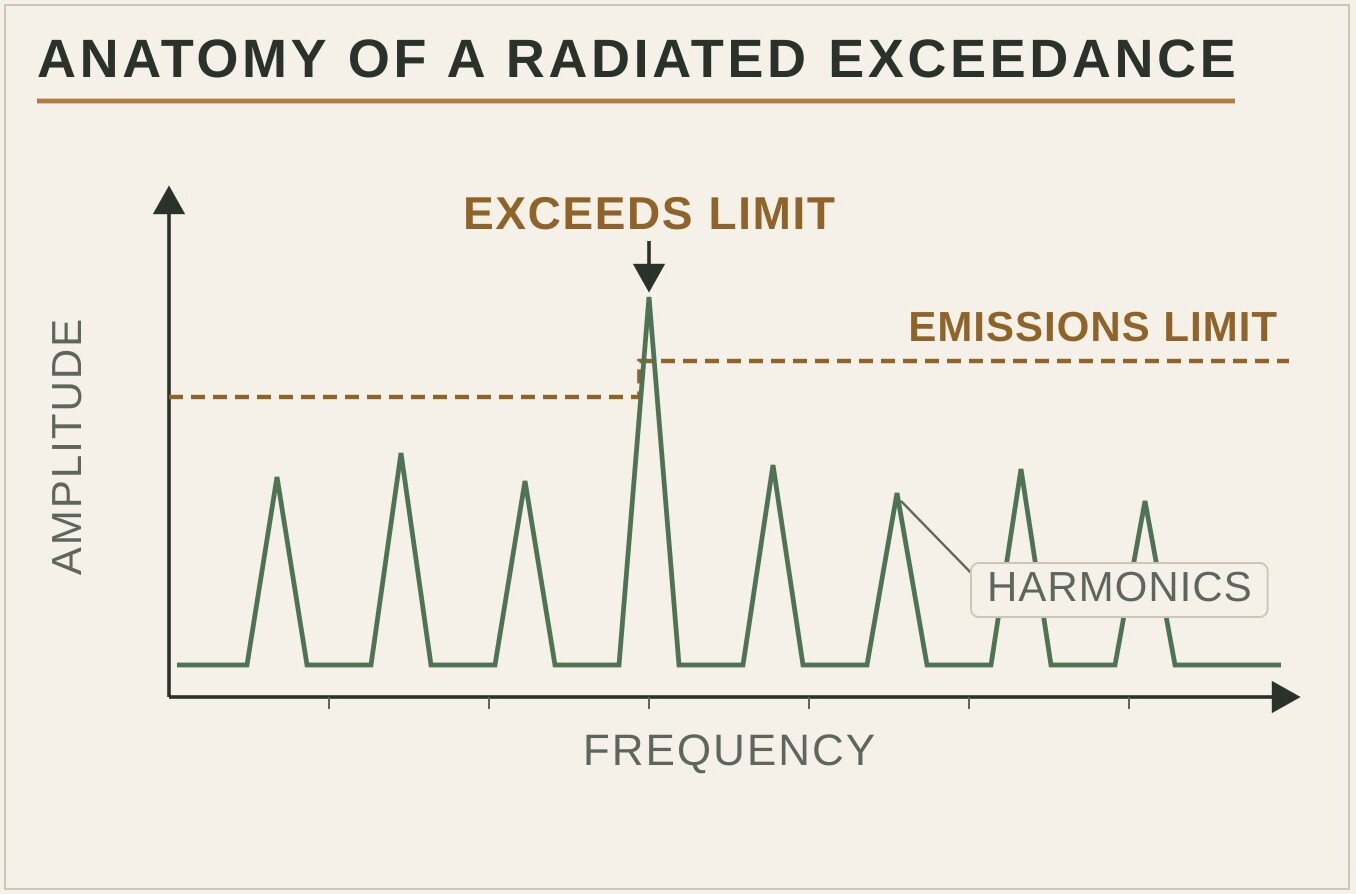

The frequency of the exceedance is your first clue. Peaks that fall on a clock frequency and its harmonics point to a digital source, while broadband humps often mean switching-supply noise is coupling out through cables or the enclosure.
Cables and harnesses are the most common radiators, because common-mode currents flowing on them turn an ordinary wire into an efficient antenna. Enclosure seams, unshielded apertures, and poorly bonded panels leak as their openings approach a fraction of a wavelength at the offending frequency.
In the US, the relevant radiated and conducted limits for most unintentional radiators live in 47 CFR Part 15, so check which class and limit you were measured against before you assume the design is far off.
Conducted Emissions: Start at the Power Port
Conducted emissions failures usually originate at the power inlet, where switch-mode supply noise couples back onto the mains. Split the problem into common-mode and differential-mode components, since each is attenuated by a different filter element, and treating them as one is why a filter change sometimes fails to move the result.
An input filter that’s undersized, placed too far from the inlet, or bonded to chassis through a long, inductive path will underperform no matter how good its components are. A line filter is only as effective as its ground reference, so verify the bond before you swap parts.
Immunity Failures: Diagnose by Symptom
Immunity failures are read from behavior, not a spectrum. A reset or lock-up during electrostatic discharge points to a discharge path reaching a sensitive node, and the test method behind that event, IEC 61000-4-2, defines exactly how and where that stress is applied so you can reproduce it on the bench.
Data corruption under fast transients or radiated fields usually means energy is coupling into I/O lines or that firmware lacks the robustness to ride through a disturbance.
Note whether the failure was hard or soft.
-
A hard failure involves damage and demands a protection change at the port, such as a transient-voltage-suppression device or gas discharge tube.
-
A soft failure is a recoverable upset, where filtering, better grounding, and firmware that detects and re-initializes will often clear it.
The Remediation Toolbox: Shielding, Filtering, Grounding, Layout
Most fixes fall into four families:
-
Reducing the source
-
Controlling coupling
-
Improving the ground
-
Correcting layout
Attacking the source is usually cheapest, so start by slowing edge rates, adding series termination, or enabling spread-spectrum clocking to bring harmonic peaks down before you try to contain them.
From there, control the coupling path with common-mode chokes or ferrites on the offending cables, gaskets across leaky seams, and shorter, lower-impedance ground returns.
Many of these are design decisions best made early, and the same shielding, layout, and enclosure strategies that prevent failures also resolve them. Change one variable at a time, or you will not know which change earned the improvement.
Validate the Fix Before You Book the Chamber
A fix that looks right on the bench isn’t proven until it’s measured. Re-running a full accredited test on an unverified change is exactly how retest fees and schedule slips accumulate, because a change that closes one exceedance can open another elsewhere in the band.
A focused pre-compliance scan confirms the original problem is gone and that no new one appeared. Look for real margin, not a pass by a fraction of a decibel, so a small unit-to-unit variation on the next sample does not put you back where you started.
Work the Problem With Your Lab
Your test lab sees these failure signatures constantly, which shortens the diagnostic loop considerably. A debug session in the chamber, with near-field probing and diagnostic scans, can localize a source in minutes that might take days to chase at your own bench.
Bring the failure report, a block diagram, and your suspected causes to that session. The more context the lab engineers have, the faster the root cause surfaces and the sooner you have a fix worth re-testing.
Turning a Failure Into a Fast Fix
A failed report doesn't have to mean a guessing game or an open-ended bill. Bring us your test data and we'll help you pinpoint the cause, fix it once, and get back into the chamber with confidence.
