Low-Noise EMC Design for Lab & Measurement Equipment

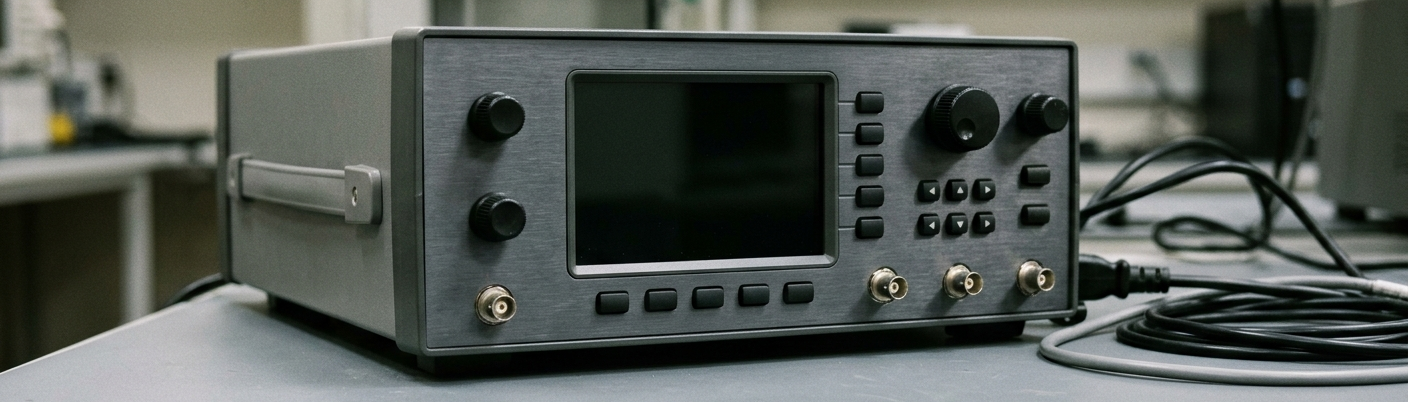

Precision measurement equipment lives with a problem that rugged industrial gear does not. A programmable logic controller can shrug off a burst of electrical noise and keep running. A nanovolt meter, a data acquisition front-end, or a precision source resolving picoamp currents cannot, because the disturbance and the signal it is trying to measure can be the same size.
That tension is written into the standards themselves. EN IEC 61326-1, the general EMC standard for electrical equipment used in measurement, control, and laboratory environments, sets emissions and immunity requirements for gear operating below 1,000 V AC or 1,500 V DC. It also acknowledges that some highly sensitive instruments cannot be fully hardened without compromising the very sensitivity they are built for.
For product teams at measurement and laboratory equipment manufacturers, that changes the design goal. The target is not only passing an immunity test, it is protecting measurement accuracy in a real electromagnetic environment. The two overlap, but they are not the same thing.
By the end, you'll be able to:
-
Explain why sensitive measurement equipment needs a stricter low-noise strategy than general-purpose electronics
-
Map the conducted and radiated paths that carry noise into a precision front-end
-
Apply grounding, segregation, shielding, and filtering decisions early, where they are cheap to change
Why Precision Equipment Is Uniquely Vulnerable to EMC Noise
A measurement front-end is engineered to detect very small signals. That same sensitivity makes it an efficient antenna and a willing victim for electromagnetic energy it was never meant to see.

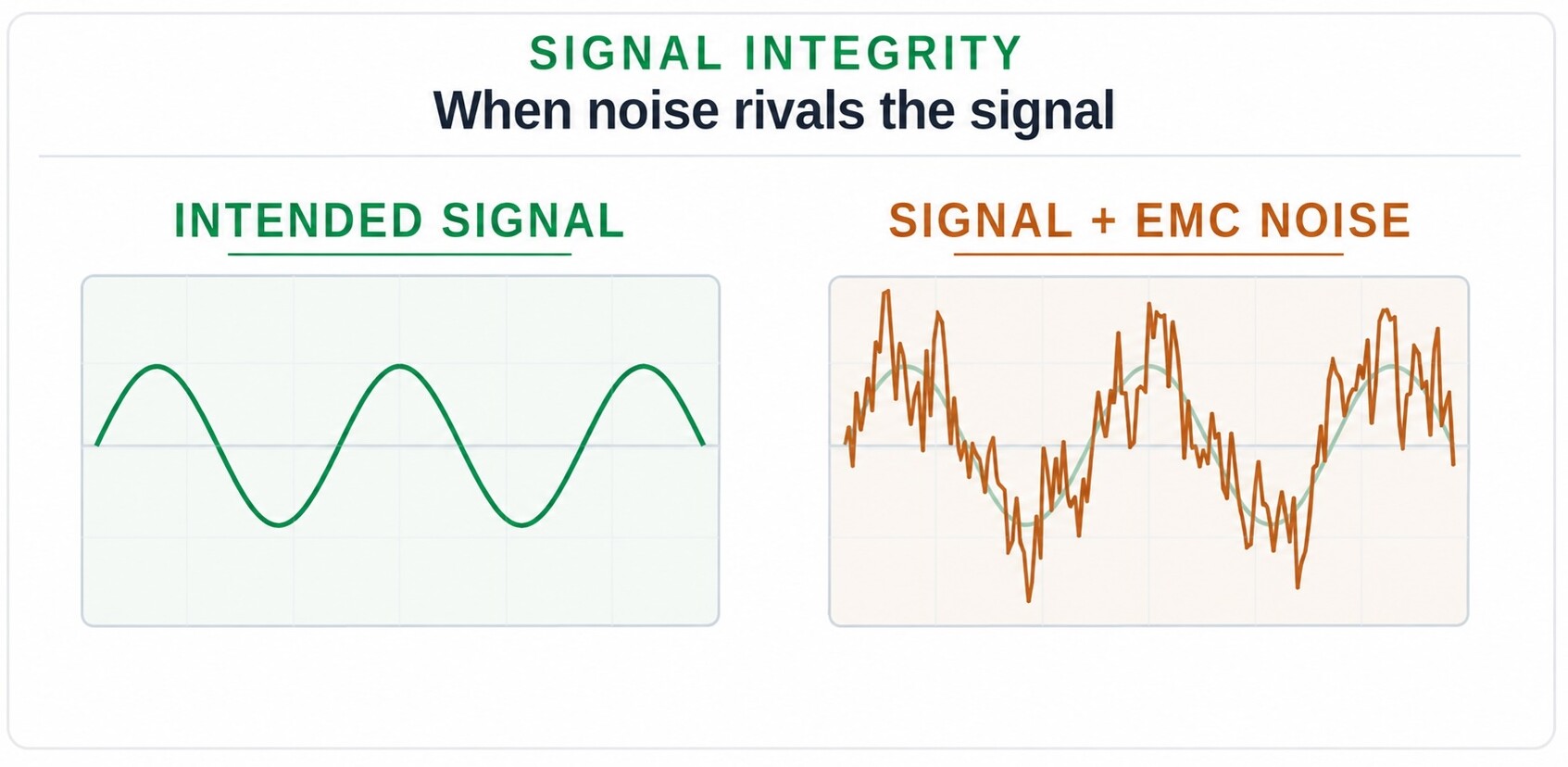

The result is a signal-to-noise problem, not a pass-or-fail one. Interference that would be invisible in a motor drive or a network switch can show up as drift, added counts, or a corrupted reading in a precision instrument. Understanding the common sources of electromagnetic interference, from switching supplies to nearby RF transmitters, is the first step in deciding what your design actually has to reject.
There is also an internal dimension. Many instruments carry their own switching power supplies, clocks, and digital processing, so the device can be its own worst noise source long before any external field arrives.
Emissions vs Immunity: What EN IEC 61326-1 Requires

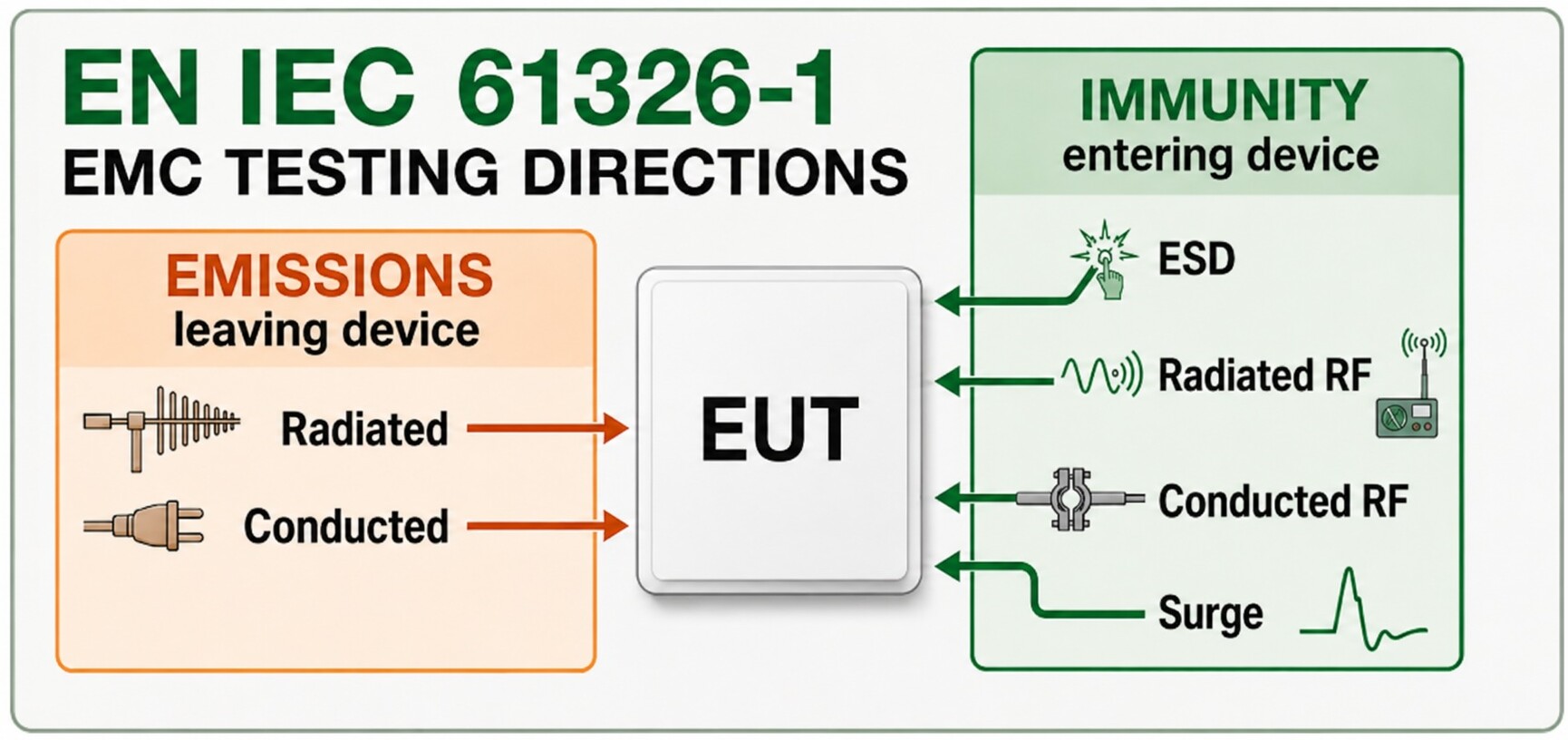

EN IEC 61326-1 works in two directions, and low-noise design has to satisfy both. On the emissions side, your equipment must not radiate or conduct disturbances that could interfere with other products, which keeps you compliant and keeps your customers' benches quiet.
On the immunity side, the standard defines a suite of tests that a measurement product must withstand, including electrostatic discharge, radiated RF fields, electrical fast transient/burst, surge, and conducted RF. Each test is paired with a performance criterion that says how the equipment is allowed to behave during and after the disturbance.
That performance criterion is where measurement products get interesting. "Continues to operate within specification" means something very specific for an instrument, because the specification is measurement accuracy, and a small induced error can breach it. This is the same emissions-and-immunity framework that underpins CE marking for measurement, control, and laboratory equipment alongside the safety requirements of EN 61010-1.
When "Immunity" Means Managed Degradation, Not Zero Effect
For the most sensitive test and measurement equipment, full immunity is not physically realistic. A companion standard, IEC 61326-2-1, addresses exactly this by defining test configurations, operating conditions, and performance criteria for sensitive equipment that is EMC-unprotected for functional reasons.
Under that framework, the manufacturer specifies the intended electromagnetic environment and selects the appropriate test levels, then documents the degradation that is acceptable. In other words, the design task becomes bounding the error, not pretending it is zero.
This is a mindset shift worth making early. Deciding up front what accuracy your product must hold, and in which environment, tells you how much shielding, filtering, and layout discipline the design genuinely needs, rather than over-building or under-building by guesswork.
Where the Noise Gets In: Conducted and Radiated Coupling Paths

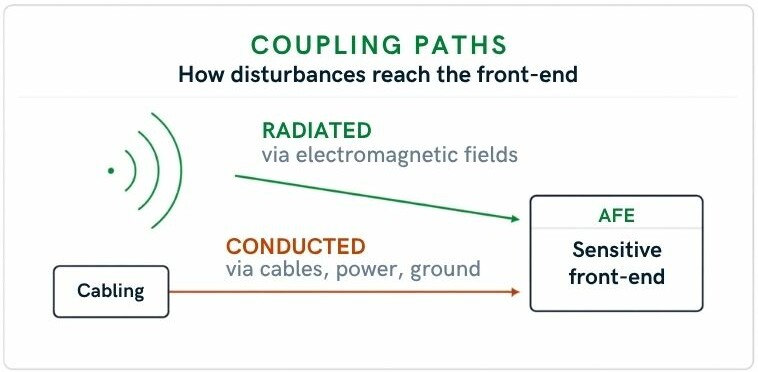

Noise reaches a sensitive front-end through two broad routes, and each calls for different countermeasures. Conducted coupling travels along power leads, signal cables, and shared ground returns, while radiated coupling arrives as electromagnetic fields that induce currents in loops, traces, and cabling.
Conducted problems are usually driven by your power architecture and line filtering, and internal switching converters are a frequent culprit in the 150 kHz to 30 MHz range. Radiated problems tend to trace back to large current loops, fragmented return paths, and cabling that acts as an antenna.
The same coupling physics governs how a product is measured on the test bench, which is why the design strategies behind radiated and conducted emissions testing apply directly to protecting signal integrity inside the box. Control the path, and you control both what leaves the product and what gets into it.
Design Levers That Protect Signal Integrity
Most low-noise performance is won or lost at the layout stage, before any prototype reaches a chamber. A handful of levers do the heavy lifting.

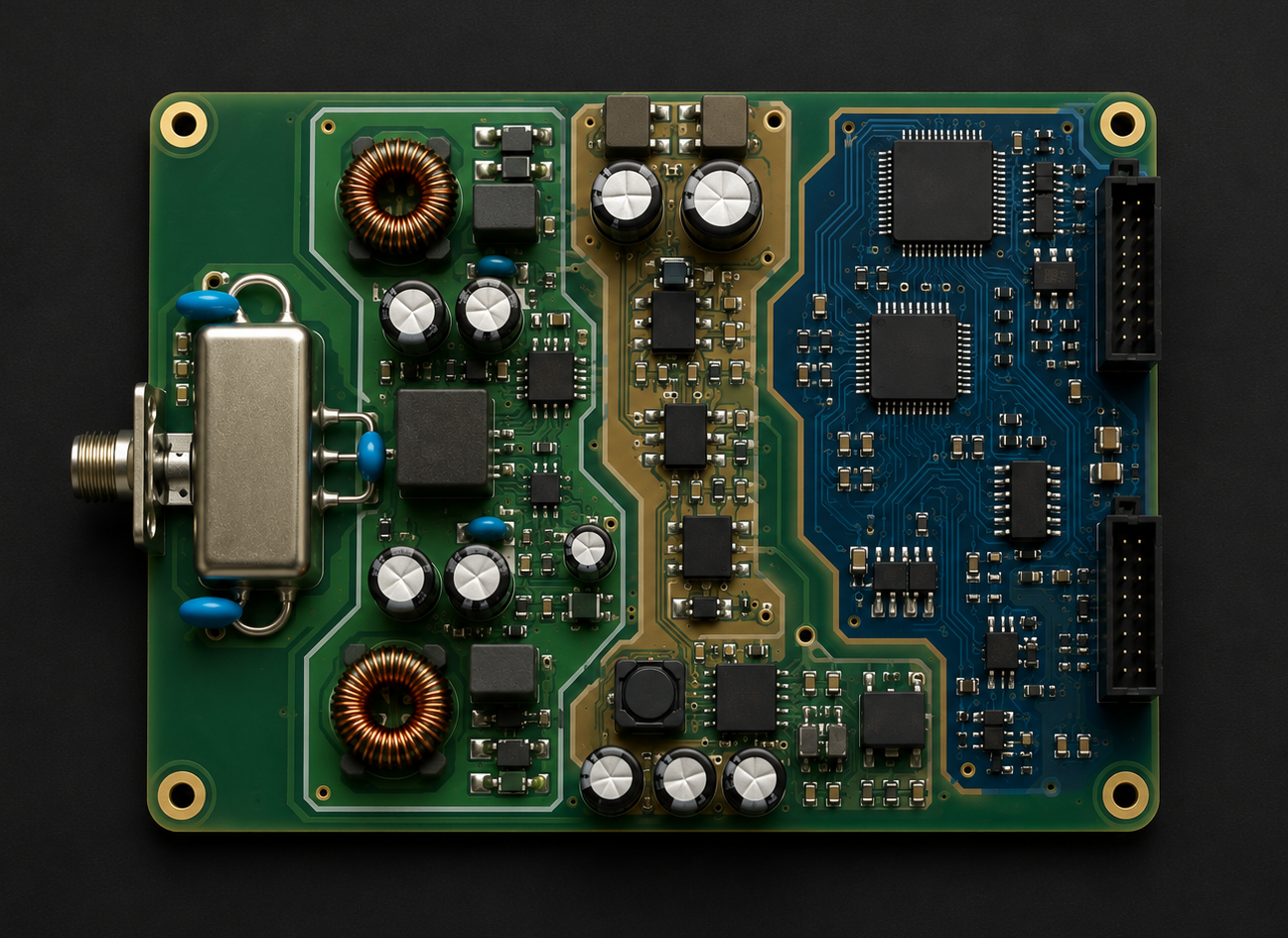

Grounding and return-path control come first, because a clean, low-impedance return keeps sensitive signals referenced to a stable point instead of riding on noisy ground currents. Segregating analog, digital, and power sections then prevents high di/dt switching activity from coupling into low-level measurement circuitry.
Shielding and filtering close the loop. Local shielding protects the most sensitive front-end stages, while filtering placed at each enclosure penetration stops conducted noise at the door instead of letting it travel inside to where it can do damage. These are the same principles that support both emissions compliance and long-term product reliability, which is why EMC belongs in the design phase rather than the debug phase.
A Real-World Lesson: How Trace and Wiring Length Defeated EMI Protection
The cost of getting placement wrong is not theoretical. In a GME case study on crosstalk in a monitoring system control unit, a product with legitimate EMI protection, a 1-nF capacitor and a properly rated MOV, was still experiencing lightning-induced transient susceptibility failures.
The problem was distance. The internal wiring from the circular connector to the PCB header exceeded 10 cm, and the input-power traces meandered several centimeters more before reaching the protection components. That long run let externally induced energy couple onto the sensitive electronics before the protection ever saw it.

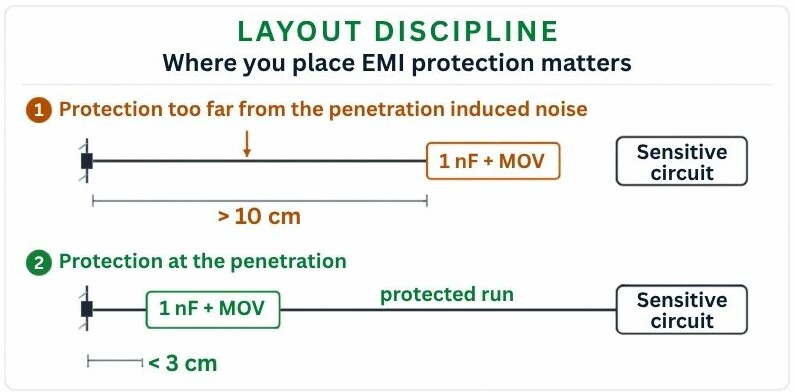

The fix was placement discipline. EMI protection should sit close to the enclosure penetration, with the combined internal wiring and trace length before it kept under roughly 3 cm, ideally locating protection right at the connector. It is a small dimension with an outsized effect on whether your protection scheme actually works.
Catch Problems Early with Pre-Compliance Testing
Every one of these decisions is far cheaper to change on a prototype than on a released product. Pre-compliance scans on representative hardware surface layout, filter, and harness issues while a re-spin still costs days instead of a market delay.
Running conducted and radiated pre-compliance early also lets you validate the accuracy budget you set for immunity, not just check a box. When it is time for formal testing, an accredited lab with strong technical expertise can help you interpret marginal results and target fixes rather than guessing at them.
Build Low-Noise Performance In From the Start
For measurement and laboratory equipment, EMC is not a late-stage hurdle, it is a measurement-accuracy strategy. The manufacturers who protect signal integrity are the ones who decide their accuracy budget early, understand their coupling paths, and commit to grounding, segregation, shielding, and filtering discipline in the first layout.
